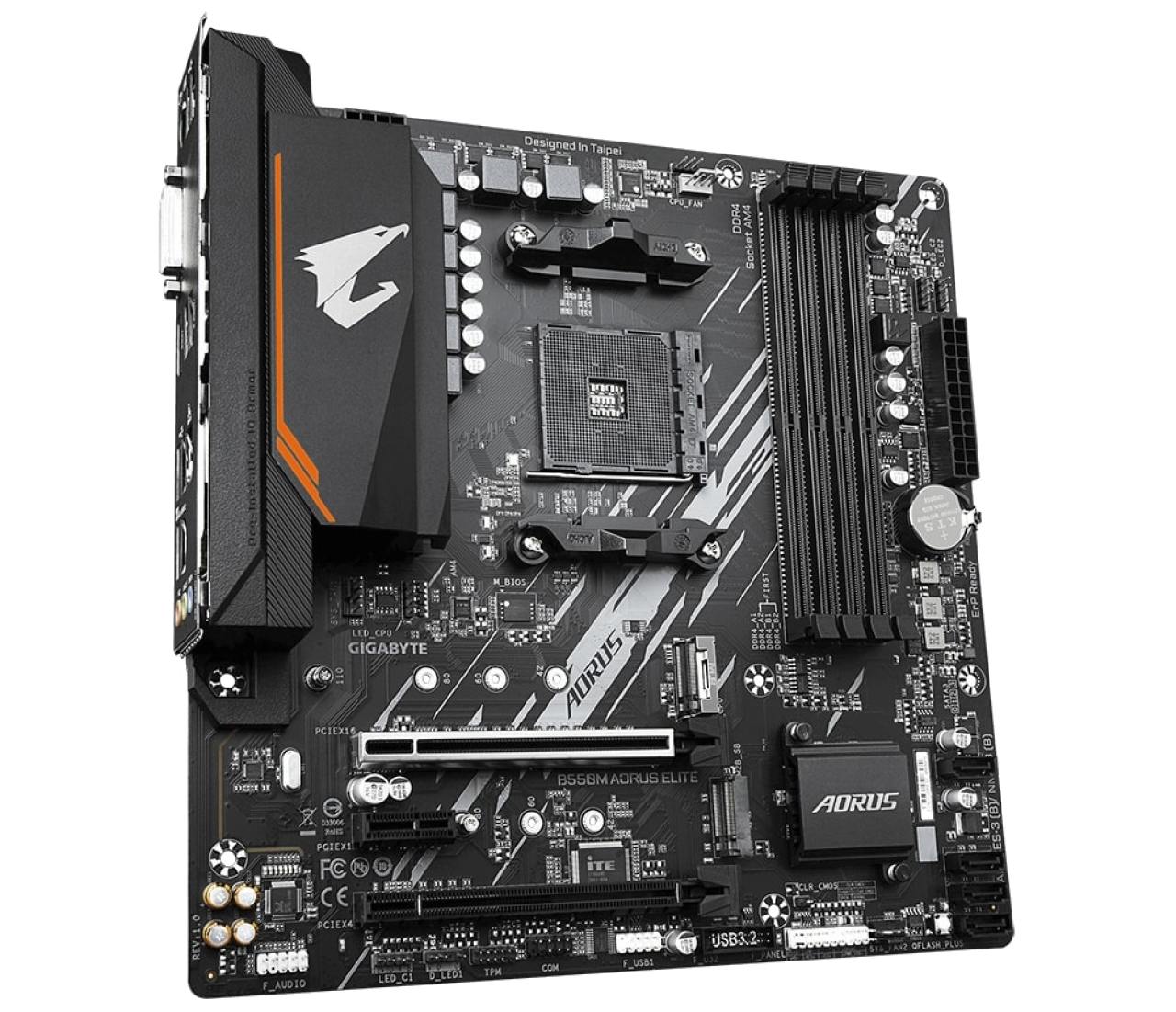

Gigabyte B550M AORUS ELITE

AMD B550 Ultra Durable Motherboard with Pure Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.03.0 M.2 Connectors, GIGABYTE 8118 Gaming LAN, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus Supports 3rd Gen AMD Ryzen™ Processors Dual Channel ECC Non-ECC Unbuffered DDR4, 4 DIMMs 53 Phases Pure Digital VRM Solution with Low RDSon MOSFETs Ultra Durable™ PCIe 4.0 Ready x16 Slot Dual Ultra-Fast NVMe PCIe 4.03.0 M.2 Connectors High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality GIGABYTE Exclusive 8118 Gaming GbE LAN Rear HDMI & DVI Support RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card Anti-Sulfur Resistors Design CPU AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors Please refer "CPU Support List" for more information. Chipset AMD B550 Memory 4 x DDR4 DIMM sockets supporting up to 128 GB 32 GB single DIMM capacity of system memory 3rd Gen AMD Ryzen™ Processors: Support for DDR4 4000O.C. 3600O.C. 3333O.C. 32002933266724002133 MHz memory modules New Generation AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 4733O.C. 4600O.C. 4400O.C. 4000O.C. 3600O.C. 3333O.C. 32002933266724002133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx82Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx82Rx81Rx16 memory modules Support for Extreme Memory Profile XMP memory modules Please refer "Memory Support List" for more information. Onboard Graphics Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB Audio Realtek® ALC887 codec High Definition Audio 245.17.1-channel To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTEs website for details on configuring the audio software. LAN Realtek® GbE LAN chip 1000 Mbit100 Mbit Expansion Slots 1? x PCI Express x16 slot PCIEX16, integrated in the CPU: 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot PCIEX4, integrated in the Chipset: Supporting PCIe 3.0 x4 mode 1 x PCI Express x1 slot PCIEX1, integrated in the Chipset: Supporting PCIe 3.0 x1 mode Storage Interface 1? x M.2 connector M2A CPU, integrated in the CPU, supporting Socket 3, M key, type 22422260228022110 SSDs: 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4x2 SSDs 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4x2 SSDs 1 x M.2 connector M2B SB, integrated in the Chipset, supporting Socket 3, M key, type 224222602280 SSDs: Supporting SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gbs connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 USB CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.01.1 ports 4 ports on the back panel, 2 ports available through the internal USB header Internal IO Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED stripRGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gbs connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.01.1 header 1 x Trusted Platform Module TPM header 2x6 pin, for the GC-TPM2.0 S module only 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button Back Panel Connectors 1 x PS2 keyboardmouse port 1 x DVI-D port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 4 x USB 2.01.1 ports 1 x RJ-45 port 3 x audio jacks IO Controller iTE® IO Controller Chip HW Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ONOFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Bundled Software Norton® Internet Security OEM version Realtek® 8118 Gaming LAN Bandwidth Control Utility Operating System Support for Windows 10 64-bit Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website. Most hardwaresoftware vendors may no longer offer drivers to support Win9XME2000XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
