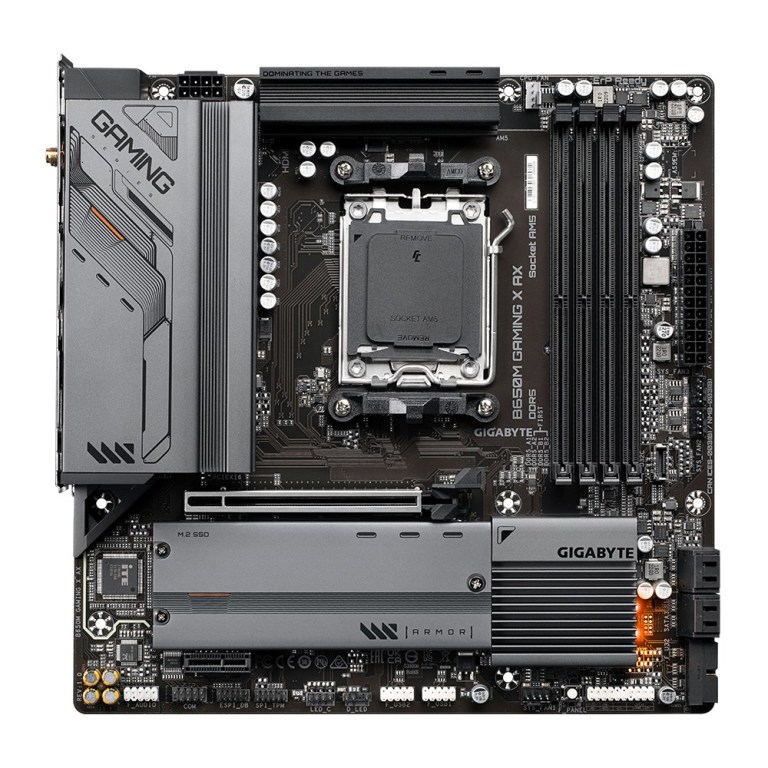

Gigabyte B650M GAMING X AX

B650M GAMING X AX AMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors Unparalleled Performance:Direct 6+2+1 Phases Digital VRM Solution Dual Channel DDR5:4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support SuperSpeed Storage:2*PCIe 4.0 x4 M.2 Connectors Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & 25110 M.2 SSD Performance EZ-Latch:PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design Fast Networks:2.5GbE LAN & Wi-Fi 6E 802.11ax Extended Connectivity:2*DP, HDMI, 2*USB-C® 10Gb/s Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card CPU AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors(Please refer "CPU Support List" for more information.) Chipset AMD B650 Memory Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules(Please refer "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor:2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz* Support for DisplayPort 1.4 version and HDR.1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU support.) Support for up to 3 displays at the same time Audio Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.2Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rateIntel® Wi-Fi 6E AX210 (For PCB rev. 1.1)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate(Actual data rate may vary depending on environment and equipment.) Expansion Slots CPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)Chipset:1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) Storage Interface CPU:2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)Chipset:4 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devices USB CPU:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 2 Type-A port (red) on the back panelCPU + USB 2.0 Hub:4 x USB 2.0/1.1 ports on the back panelChipset:1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)4 x USB 2.0/1.1 ports available through the internal USB headers Internal I/O Connectors 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers1 x addressable LED strip header1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x reset button1 x reset jumper1 x Clear CMOS jumper Back Panel Connectors 4 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port2 x SMA antenna connectors (2T2R)2 x DisplayPorts1 x HDMI port1 x USB 3.2 Gen 2 Type-A port (red)1 x USB Type-C® port, with USB 3.2 Gen 2 support1 x Q-Flash Plus button1 x RJ-45 port2 x USB 3.2 Gen 1 ports3 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detectionTemperature detectionFan speed detectionFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash Plus Bundled Software Norton® Internet Security (OEM version)LAN bandwidth management software Operating System Support for Windows 11 64-bitSupport for Windows 10 64-bit Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm.
