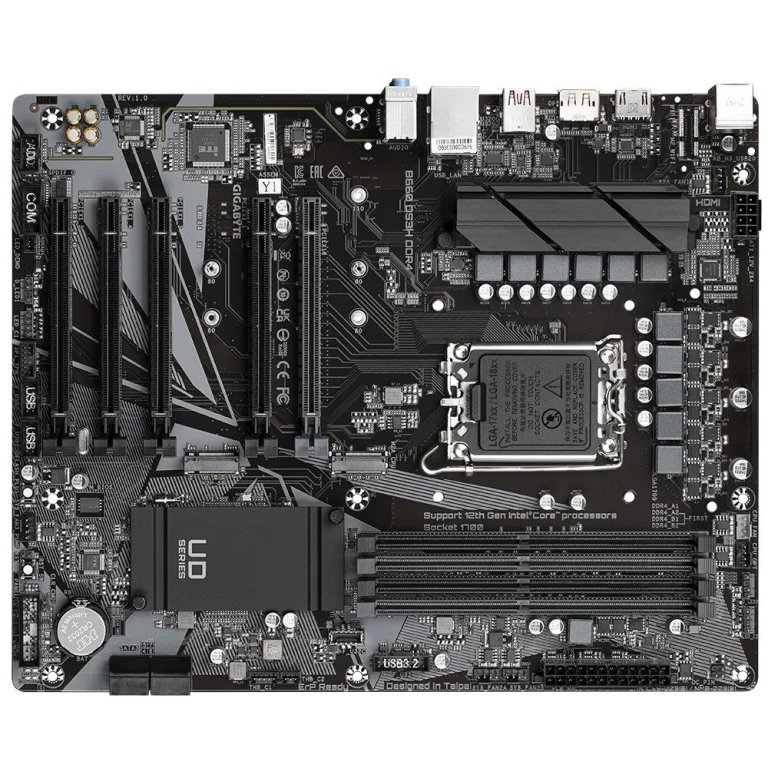

Gigabyte B660 DS3H DDR4

Chipset: Intel B660 Express Chipset Rozměrový formát: ATX (30.5cm x 24.4cm) Podpora pro procesory: 12th Generation Intel Core, Pentium Gold and Celeron Processors Patice procesoru: LGA 1700 Pozice na paměti: 4 x DDR DIMM, Dual channel memory architecture Podpora pro paměti: DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz Max.velikost operační paměti: 128 GB Podpora pro paměti typu: ECC, XMP Grafická karta: (Intel HD Graphics) *1 x HDMI 2.1 port - 4096x2160@60 Hz *1 x DisplayPort 1.2 - 4096x2304@60 Hz Zvuková karta: Realtek Audio CODEC *2/4/5.1/7.1-channel *Podpora S/PDIF Out Síťová karta: Realtek GbE LAN chip (1 Gbps/100 Mbps) Rozšiřující sloty: *1 x PCI Express x16 slot, running at x16 (PCI Express 4.0 standard) *4 x PCI Express x16 slots, running at x1 (PCI Express 3.0 standard) RAID řadič: RAID 0, RAID 1, RAID 5, and RAID 10 SATA: 4 x SATA 6Gb/s connectors M.2: 2 x M.2 Socket 3 connectors USB: *Interní: *1 x USB Type-C header, with USB 3.2 Gen 1 support *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers *Externí: *1 x USB Type-C port, with USB 3.2 Gen 2x2 support *1 x USB 3.2 Gen 2 Type-A port (red) *4 x USB 2.0/1.1 ports Interní porty: *1 x 24-pin ATX main power connector *1 x 8-pin ATX 12V power connector *1 x CPU fan header *1 x water cooling CPU fan header *3 x system fan headers *1 x system fan/water cooling pump header *2 x addressable LED strip headers *2 x RGB LED strip headers *2 x M.2 Socket 3 connectors *4 x SATA 6Gb/s connectors *1 x front panel header *1 x front panel audio header *1 x USB Type-C header, with USB 3.2 Gen 1 support *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers *2 x Thunderbolt add-in card connectors *1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) *1 x serial port header *1 x Q-Flash Plus button *1 x reset button *1 x reset jumper *1 x Clear CMOS jumper Externí porty: *1 x PS/2 keyboard/mouse port *1 x USB Type-C port, with USB 3.2 Gen 2x2 support *1 x USB 3.2 Gen 2 Type-A port (red) *4 x USB 2.0/1.1 ports *1 x HDMI port *1 x DisplayPort *1 x RJ-45 port *3 x audio jacks BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash Stránka výrobce: http://www.gigabyte.com/Motherboard/B660-DS3H-DDR4-rev-10#kf.
