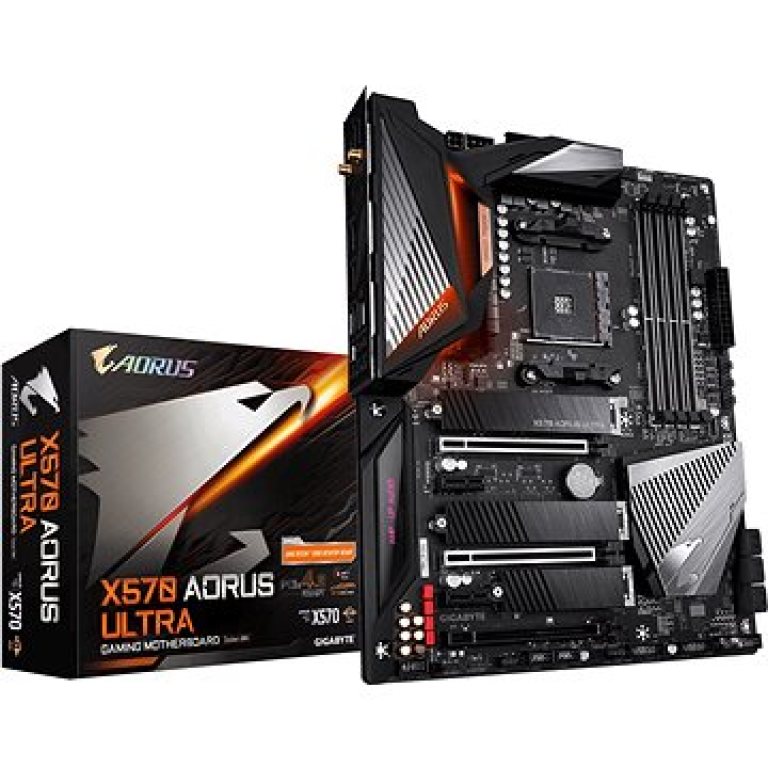

Gigabyte X570 AORUS Ultra

CPU.AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors.(Please refer "CPU Support List" for more information.).Chipset.AMD X570.Memory.3rd Generation AMD Ryzen™ processors:.Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules.2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:.Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules.4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory.Dual channel memory architecture.Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*.ECC mode supported by 3rd Gen AMD Ryzen™/ 2nd Gen AMD Ryzen™ and only PRO sku of 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors.Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules.Support for Extreme Memory Profile (XMP) memory modules.(Please refer "Memory Support List" for more information.).Onboard Graphics.Integrated Graphics Processor:.1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz.Support for HDMI 2.0 version, HDCP 2.2, and HDR.Maximum shared memory of 16 GB.For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.Audio.Realtek® ALC1220-VB codec.The back panel line out jack supports DSD audio.High Definition Audio.2/4/5.1/7.1-channel.Support for S/PDIF Out.LAN.Intel® GbE LAN chip (10/100/1000 Mbit).Wireless Communication module.Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band.BLUETOOTH 5.0.Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate.Actual data rate may vary depending on environment and equipment.Expansion Slots.Integrated in the CPU (PCIEX16/PCIEX8):.3rd Generation AMD Ryzen™ processors:.1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16).1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8).2nd Generation AMD Ryzen™ processors:.1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16).1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8).For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode.2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:.1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16).Integrated in the Chipset (PCIEX4/PCIEX1):.1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4).For 3rd Generation AMD Ryzen™ processors only.2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0.For 3rd Generation AMD Ryzen™ processors only.Multi-Graphics Technology.Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies.Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies.For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.Storage Interface.Integrated in the CPU (M2A_SOCKET):.3rd Generation AMD Ryzen™ processors:.1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support).2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:.1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support).Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET):.1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET).For 3rd Generation AMD Ryzen™ processors only.1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0*/3.0 x2 SSD support) (M2C_SOCKET).For 3rd Generation AMD Ryzen™ processors only.6 x SATA 6Gb/s connectors.Support for RAID 0, RAID 1, and RAID 10.Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.USB.Integrated in the CPU:.3 x USB 3.2 Gen 1 ports on the back panel.1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) on the back panel.For 3rd Generation AMD Ryzen™ processors only.Chipset:.1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header.1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support.1 x USB 3.2 Gen 2 Type-A port (red) on the back panel.4 x USB 3.2 Gen 1 ports available through the internal USB headers.Chipset+USB 2.0 Hubs:.8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers).Internal I/O Connectors.1 x 24-pin ATX main power connector.1 x 8-pin ATX 12V power connector.1 x 4-pin ATX 12V power connector.1 x CPU fan header.1 x water cooling CPU fan header.3 x system fan headers.2 x system fan/water cooling pump headers.2 x addressable LED strip headers.2 x RGB LED strip headers.1 x CPU cooler LED strip/RGB LED strip header.3 x M.2 Socket 3 connectors.6 x SATA 6Gb/s connectors.1 x front panel header.1 x front panel audio header.1 x USB Type-C™ port, with USB 3.2 Gen 2 support.2 x USB 3.2 Gen 1 headers.2 x USB 2.0/1.1 headers.1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only).1 x Clear CMOS jumper.2 x temperature sensor headers.1 x Q-Flash Plus button.Back Panel Connectors.2 x SMA antenna connectors (2T2R).1 x HDMI port.1 x USB Type-C™ port, with USB 3.2 Gen 2 support.1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red).For 3rd Generation AMD Ryzen™ processors only.1 x USB 3.2 Gen 2 Type-A port (red).3 x USB 3.2 Gen 1 ports.4 x USB 2.0/1.1 ports.1 x RJ-45 port.1 x optical S/PDIF Out connector.5 x audio jacks.I/O Controller.iTE® I/O Controller Chip.H/W Monitoring.Voltage detection.Temperature detection.Fan speed d.
