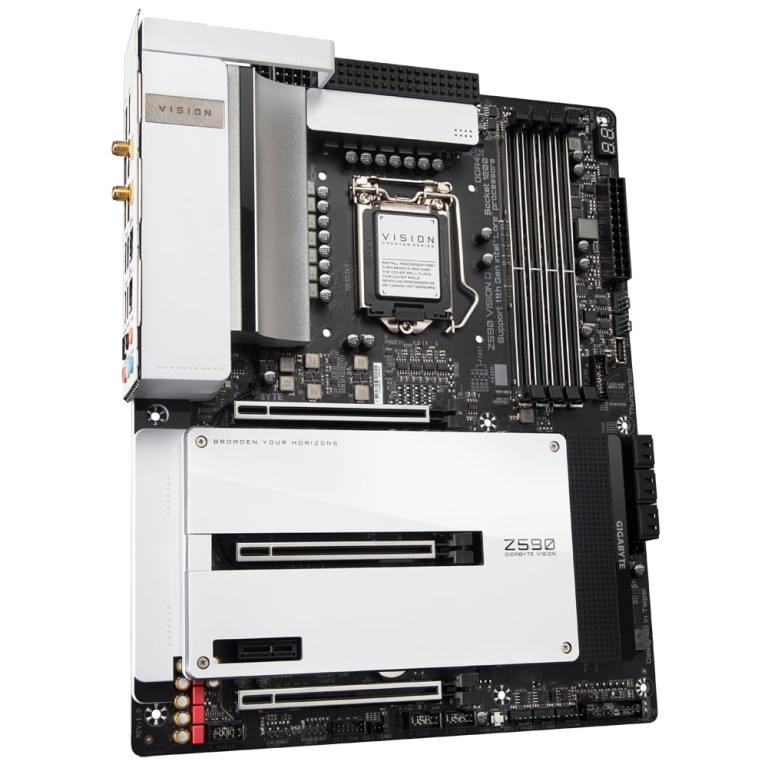

Gigabyte Z590 VISION D

Z590 VISION D Intel® Z590 Creators Motherboard with unique VisionLINK TB I/O design, Effective thermal solution, Thunderbolt™ 4, Intel® Wi-Fi 6 802.11ax and dual Intel® 2.5GbE LAN, Dual PCIe 4.0 x16 slots, Triple NVMe PCIe X4 M.2 Connectors, Front USB 3.2 Gen2x2 Type-C® Header Powerful performance support 11th and 10th Gen Intel® Core™ Series Processors Dual Channel Non-ECC Unbuffered DDR4 memory, 4 DIMMs Go further without more cables by VisionLINK TB I/O design The limitless connectivity by Thunderbolt™ 4 High-bandwidth and low-latency network support by dual Intel® 2.5GbE LAN Intel® Wi-Fi 6 2x2 802.11ax with all new antenna support for better signal SuperSpeed USB 3.2 Gen2x2 Type-C® Header Triple Ultra-Fast NVMe PCIe x4 M.2 connectors with unique thermal guards Comprehensive cooling solution design for the better thermal dissipation Smart Fan 6 features hybrid fan headers and numerous temperature sensors for fan mode configuration Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card TECHNICAL SPECIFICATIONS CPU LGA1200 package:11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors** Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.L3 cache varies with CPU(Please refer to "CPU Support List" for more information.) Chipset Intel® Z590 Express Chipset Memory 11th Generation Intel® Core™ i9/i7/i5 processors:Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules10th Generation Intel® Core™ i9/i7 processors:Support for DDR4 2933/2666/2400/2133 MHz memory modules10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:Support for DDR4 2666/2400/2133 MHz memory modules4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor+Intel® Thunderbolt™ 4 Controller:1 x VisionLINK TB connector (Intel® Thunderbolt™ 4/USB Type-C® port)1 x Intel® Thunderbolt™ 4 connector (USB Type-C® port)* The Intel® Thunderbolt™ 4 connectors support DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120x2880@60 Hz with 24 bpp (via single display output)* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.)* Support for DisplayPort 1.4 version and HDCP 2.3.Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz* Support for HDMI 1.4 version and HDCP 2.3.(Graphics specifications may vary depending on CPU support.) Audio Realtek® ALC4080 codecSupport for DTS:X® UltraHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot, running at x8 (PCIEX8)* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.(The PCIEX16 and PCIEX8 slots conform to PCI Express 4.0 standard.)** Supported by 11th Generation processors only.1 x PCI Express x16 slot, running at x4 (PCIEX4)* The PCIEX4 slot shares bandwidth with the M2P_SB connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P_SB connector.1 x PCI Express x1 slot(The PCIEX4 and PCI Express x1 slots conform to PCI Express 3.0 standard.) Storage Interface CPU:1 x M.2 connector (Socket 3, M key, type 2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)** Supported by 11th Generation processors only.Chipset:1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M_SB)1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2P_SB)6 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, RAID 5, and RAID 10* Refer to "1-8 Internal Connectors," for the installation notices for the PCIEX4, M.2, and SATA connectors.Intel® Optane™ Memory Ready LAN 2 x Intel® 2.5GbE LAN chips (2.5 Gbit/1 Gbit/100 Mbit) Wireless Communication module Intel® Wi-Fi 6E AX210WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-BandBLUETOOTH 5.1Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate* Actual data rate may vary depending on environment and equipment. Multi-Graphics Technology Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies USB Chipset+Intel® Thunderbolt™ 4 Controller:2 x USB Type-C® ports on the back panel, with USB 3.2 Gen 2 supportChipset:1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel2 x USB 3.2 Gen 1 ports available through the internal USB headerChipset+USB 3.2 Gen 1 Hub:4 x USB 3.2 Gen 1 ports on the back panelChipset+USB 2.0 Hub:4 x USB 2.0/1.1 ports available through the internal USB headers I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.Noise detection Unique Features Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress Install Bundled Software Norton® Internet Security (OEM version)cFosSpeed Back Panel Connectors 1 x DisplayPort In port1 x HDMI port2 x SMA antenna connectors (2T2R)2 x Thunderbolt™ 4 connectors (USB Type-C® port, with USB 3.2 Gen 2 support)2 x USB 3.2 Gen 2 Type-A ports (red)4 x USB 3.2 Gen 1 ports2 x RJ-45 ports1 x optical S/PDIF Out connector5 x audio jacks Internal I/O Connectors 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector1 x CPU fan header1 x water cooling CPU fan header4 x system fan headers2 x system fan/water cooling pump headers2 x addressable LED strip headers2 x RGB LED strip headers3 x M.2 Socket 3 connectors6 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x noise detection header1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)2 x temperature sensor headers1 x Clear CMOS jumper1 x Q-Flash Plus button BIOS 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Operating System Support for Windows 10 64-bit Form Factor ATX Form Factor; 30.5 x 24.4 cm.
