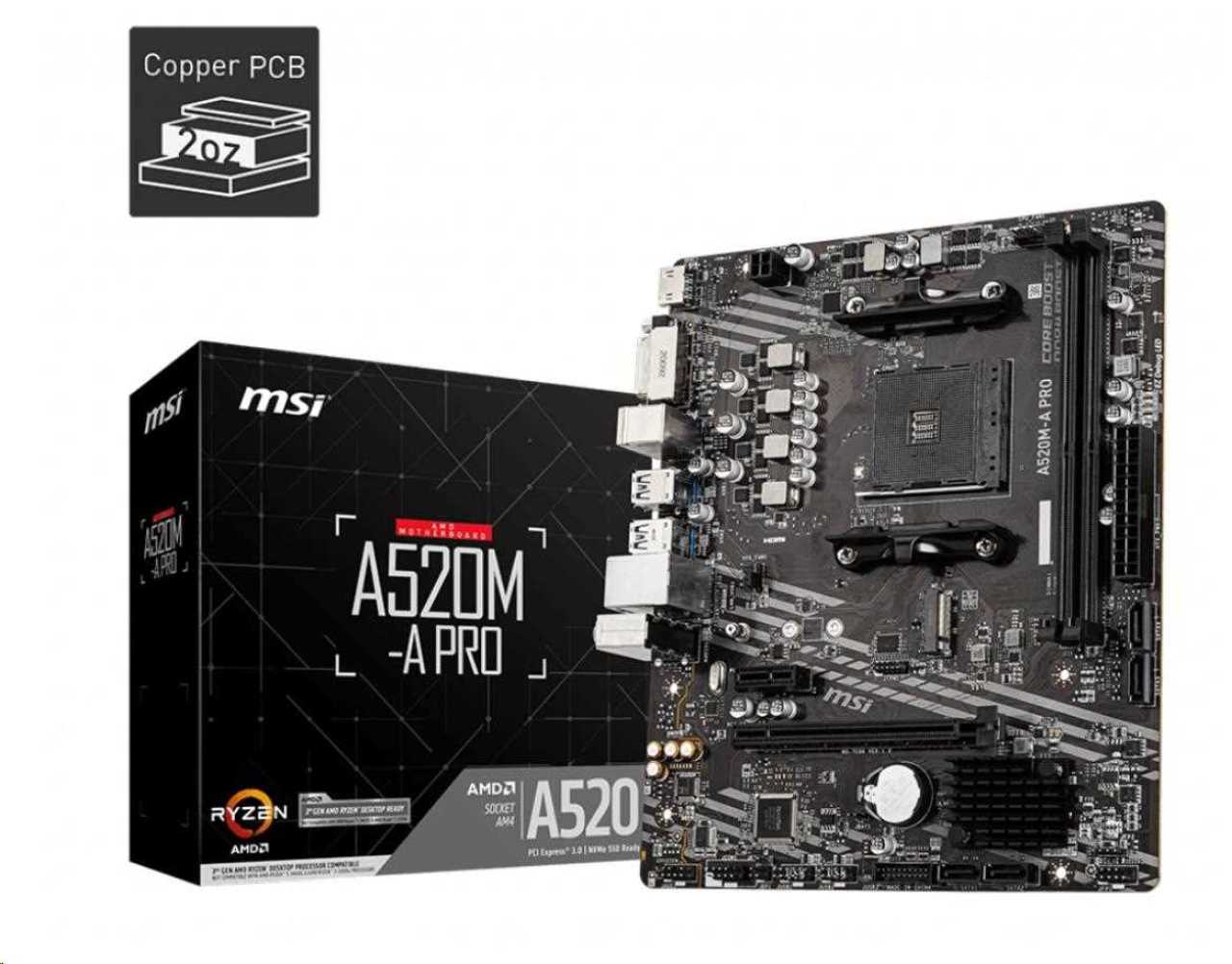

MSI A520M-A PRO

CPU Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™4000 G-Series Desktop Processors Chipset AMD A520 Chipset Memory 2x DDR4 memory slots, support up to 64GB 1 Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory Expansion Slot 1x PCIe 3.0 x1 slot 1x PCIe x16 slot The supported specification depends on installed processor. Onboard Graphics 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz Maximum shared memory of 16 GB Available for the processor with integrated graphics. Graphics specifications may vary depending on the CPU installed. Storage AMD A520 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 1 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices The supported specification depends on installed processor. RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices USB AMD A520 Chipset 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel Audio Realtek® ALC892 Codec 7.1-Channel High Definition Audio LAN 1x Realtek® RTL8111H Gigabit LAN controller Internal connectors 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1xTPM module connector 1x Clear CMOS jumper Back panel ports LAN port HDMI DVI-D Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 2.0 Ports Audio Connectors Dimensions Micro-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20 cm).
