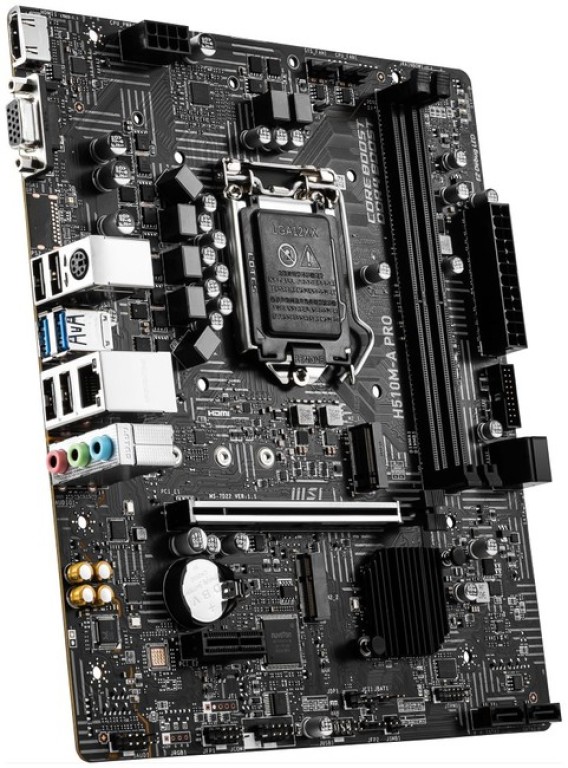

MSI H510M-A PRO

H510M-A PRO Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket Supports DDR4 Memory, up to 3200(Max) MHz Core Boost: With premium layout and digital power design to support more cores and provide better performance. DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability. Lightning Fast Experience: PCIe 4.0 Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs Audio Boost: Reward your ears with studio grade sound quality Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength. PROCESSOR Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors**Please go to www.intel.com for more compatibility information. CHIPSET Intel® H510 Chipset MEMORY 2x DDR4 memory slots, support up to 64GB*Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)Supports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel® Extreme Memory Profile (XMP)*Please refer to www.msi.com for more information on compatible memory. EXPANSION SLOT 1x PCIe x16 slot (From CPU)Support up to PCIe 4.0 for 11th Gen Intel® CPUSupport up to PCIe 3.0 for 10th Gen Intel® CPU1x PCIe 3.0 x1 slot (From PCH)1x M.2 slot with E key for WiFi module only(M2_2) ONBOARD GRAPHICS 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz */**1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz**Available only on processors featuring integrated graphics. **Graphics specifications may vary depending on the CPU installed. STORAGE 4x SATA 6Gb/s ports (From H510 Chipset)1x M.2 slot (Key M)M2_1 slot (From H510 Chipset)*Supports up to PCIe 3.0 x4Supports 2242/ 2260/ 2280 storage devices*SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. USB Intel® H510 Chipset4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)6x USB 2.0 ports (4 Type-A ports on the back panel(hub- GL850G), 2 ports available through the internal USB 2.0 connector) AUDIO Realtek® ALC897 Codec7.1-Channel High Definition Audio LAN 1x Intel® I219V 1Gbps LAN controller INTERNAL CONNECTORS 1x 24-pin ATX main power connector1x 8-pin ATX 12V power connector4x SATA 6Gb/s connectors1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)1x USB 2.0 connector (supports additional 2 USB 2.0 ports)1x 4-pin CPU fan connector1x 4-pin system fan connector1x Front panel audio connector2x System panel connectors1x Serial port connector1x Chassis Intrusion connector1x Clear CMOS jumper1x TPM module connector BACK PANEL PORTS HDMIVGAMouse / KeyboardLAN portAudio connectorUSB 2.0USB 3.2 Gen 1 5Gbps Type-AUSB 2.0MSI H510M-A PRO back panel ports DIMENSIONS mATX Form Factor9.29 x 7.95 in. (23.6 cm x 20.2 cm) MOUNTING 6 mounting holes OPERATING SYSTEM Support for Windows® 10 64-bit.
