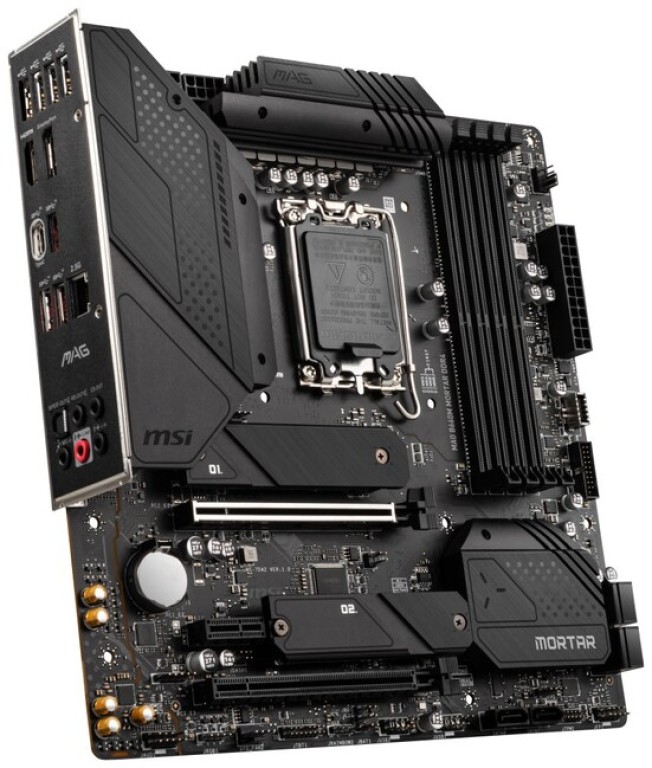

MSI MAG B660M MORTAR DDR4

MAG B660M MORTAR DDR4 Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket Supports DDR4 Memory, up to 4800+(OC) MHz Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1 Audio Boost: Reward your ears with studio grade sound quality Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™ PROCESSOR Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors*Processor socket LGA1700* Please go to msi.com to get the newest support status as new processors are released. CHIPSET Intel® B660 Chipset MEMORY 4x DDR4 memory slots, support up to 128GB*Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)Max overclocking frequency:1DPC 1R Max speed up to 4800+ MHz1DPC 2R Max speed up to 4000+ MHz2DPC 1R Max speed up to 4000+ MHz2DPC 2R Max speed up to 3600+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel® Extreme Memory Profile (XMP)*Please refer to www.msi.com for more information on compatible memory. EXPANSION SLOT 2x PCIe x16 slotsPCI_E1 slot (From CPU)Supports PCIe 4.0 x16PCI_E3 slot (From B660 Chipset)Supports PCIe 3.0 x41x PCIe 3.0 x1 slot MULTI-GPU Supports 2-Way AMD® CrossFire™ Technology ONBOARD GRAPHICS 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz */**1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz */***Available only on processors featuring integrated graphics.**Graphics specifications may vary depending on the CPU installed. STORAGE 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset)*2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061)2x M.2 slots (Key M)M2_1 slot (From CPU)Supports PCIe 4.0 x4Supports 2242/ 2260/ 2280 storage devicesM2_2 slot (From B660 Chipset)*Supports PCIe 4.0 x4Supports SATA 6Gb/sSupports 2242/ 2260/ 2280 storage devicesSupports Intel® Optane™ Memory*SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices1*SATA_A & SATA_B do not support RAID function. USB Intel® B660 Chipset1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector2x USB 3.2 Gen 1 5Gbps ports available through the internal connector4x USB 2.0 ports on the back panelUSB Hub-GL35903x USB 3.2 Gen 2 10Gbps Type-A ports on the back panelUSB Hub-GL850G4x USB 2.0 ports available through internal connectors AUDIO Realtek® ALC1200 Codec7.1-Channel High Definition AudioSupports S/PDIF output LAN 1x Realtek® 8125BG 2.5Gbps LAN controller INTERNAL CONNECTORS 1x 24-pin ATX main power connector2x 8-pin ATX 12V power connectors6x SATA 6Gb/s connectors2x M.2 slots (M-Key)1x USB 3.2 Gen 2 10Gbps Type-C connector1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)1x 4-pin CPU fan connector1x 4-pin water-pump fan connector2x 4-pin system fan connectors1x Front panel audio connector2x System panel connectors1x Chassis Intrusion connector1x Clear CMOS jumper1x TPM module connector1x TBT connector (supports RTD3)1x Tuning Controller connector LED FEATURE 4x EZ Debug LED1x 4-pin RGB LED connector2x 3-pin RAINBOW LED connectors BACK PANEL PORTS USB 2.0 PortDisplayPort 1.4USB 3.2 Gen 2 10Gbps Type-A2.5G LAN PortHD Audio ConnectorsHDMI 2.1 PortUSB 3.2 Gen 2x2 20Gbps Type-COptical S/PDIF OUTMAG B660M MORTAR DDR4 back panel ports DIMENSIONS Micro-ATX Form Factor9.6 in. x 9.6 in. (24.4 cm x 24.4 cm).
