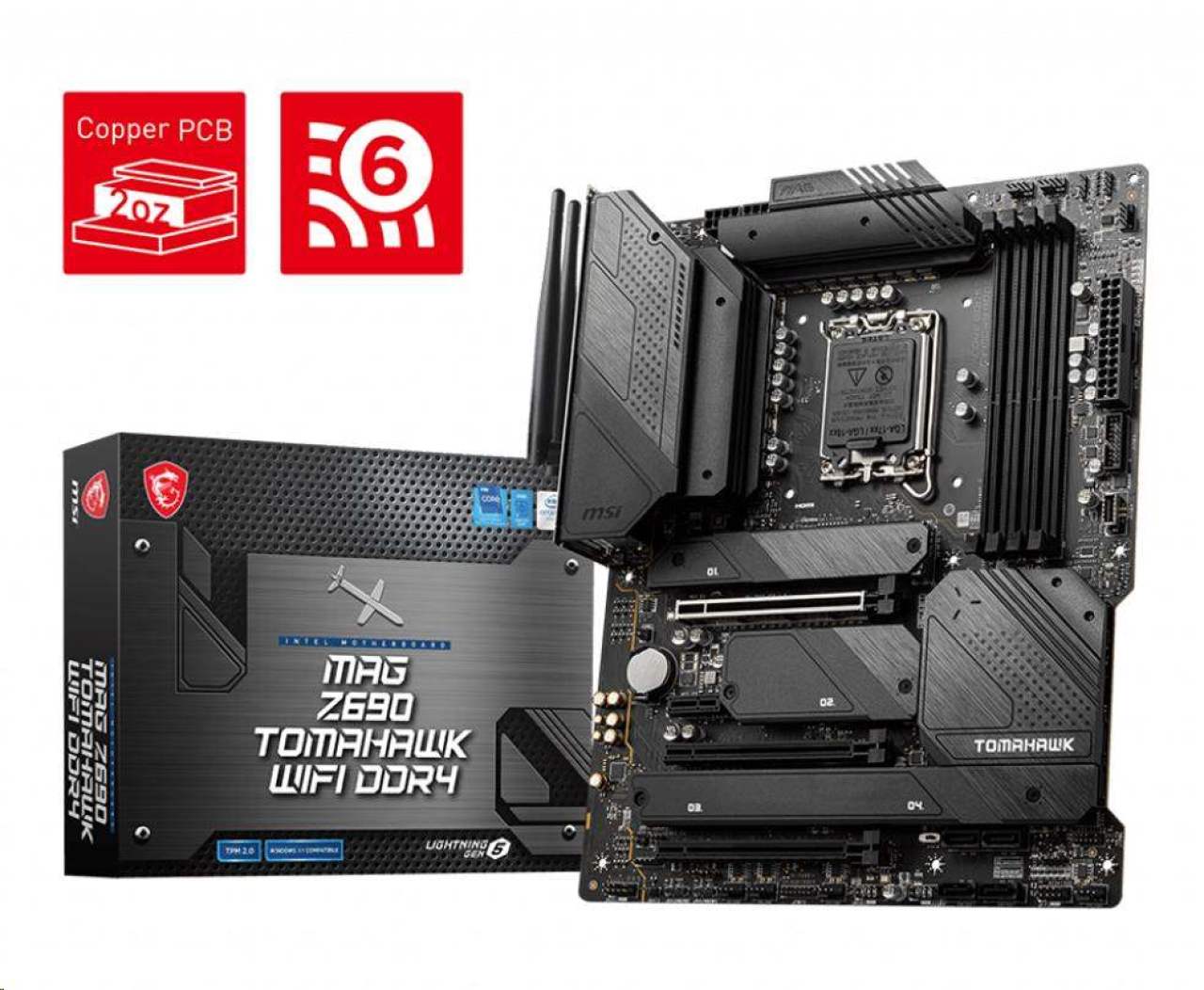

MSI MAG Z690 TOMAHAWK WIFI DDR4

MAG Z690 TOMAHAWK WIFI DDR4 Supports DDR4 Memory, up to 5200(OC) MHz Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe based SSDs Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1 AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™ PROCESSOR Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processorsProcessor socket LGA1700 CHIPSET Intel® Z690 Chipset MEMORY 4x DDR4 memory slots, support up to 128GBSupports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)Max overclocking frequency:1DPC 1R Max speed up to 5200+ MHz1DPC 2R Max speed up to 4800+ MHz2DPC 1R Max speed up to 4400+ MHz2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel® Extreme Memory Profile (XMP) EXPANSION SLOT 3x PCIe x16 slotsPCI_E1 (From CPU)Support up to PCIe 5.0 x16PCI_E3 (From Z690 chipset)Support up to PCIe 3.0 x4PCI_E4 (From Z690 chipset)Support up to PCIe 3.0 x11x PCIe 3.0 x1 slot (From Z690 chipset) MULTI-GPU Supports AMD® CrossFire™ Technology ONBOARD GRAPHICS 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz * / **1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz * / ***Available only on processors featuring integrated graphics.**Graphics specifications may vary depending on the CPU installed. STORAGE 6x SATA 6Gb/s ports (From Z690 chipset)4x M.2 slots (Key M)M2_1 slot (From CPU)Supports up to PCIe 4.0 x4Supports 2242/ 2260/ 2280/ 22110 storage devicesM2_2 slot (From Z690 chipset)Supports up to PCIe 4.0 x4Supports 2242/ 2260/ 2280 storage devicesM2_3 slot (From Z690 chipset)Supports up to PCIe 3.0 x4Supports up to SATA 6Gb/sSupports 2242/ 2260/ 2280 storage devicesM2_4 slot (From Z690 chipset)Supports up to PCIe 4.0 x4Supports up to SATA 6Gb/sSupports 2242/ 2260/ 2280 storage devicesIntel® Optane™ Memory Ready for M.2 slots from Z690 ChipsetSupports Intel® Smart Response Technology for Intel Core™ processors RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices USB Intel® Z690 Chipset1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector, 3 Type-A ports on the back panel)4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal connector)1x USB 2.0 Type-A port on the back panelHub-GL850G5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors) AUDIO Realtek® ALC4080 Codec7.1-Channel High Definition AudioSupports S/PDIF output LAN 1x Intel® I225V 2.5Gbps LAN controller WIRELESS LAN & BLUETOOTH® Intel® Wi-Fi 6The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.2 INTERNAL CONNECTORS 1x 24-pin ATX main power connector2x 8-pin ATX 12V power connectors6x SATA 6Gb/s connectors4x M.2 slots (M-Key)1x USB 3.2 Gen 2 10Gbps Type-C port1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)1x 4-pin CPU fan connector1x 4-pin water-pump fan connector6x 4-pin system fan connectors1x Front panel audio connector2x System panel connectors1x Chassis Intrusion connector1x TPM module connector1x Clear CMOS jumper1x TBT connector (supports RTD3)1x Tuning Controller connector LED FEATURE 1x EZ LED Control switch1x 4-pin RGB LED connectors3x 3-pin RAINBOW LED connectors4x EZ Debug LED BACK PANEL PORTS DisplayPort 1.4USB 2.0 PortUSB 3.2 Gen 2 10Gbps Type-A2.5G LAN PortWi-Fi / Bluetooth AntennaHD Audio ConnectorsHDMI 2.1 PortFlash BIOS ButtonUSB 3.2 Gen 1 5Gbps Type-AUSB 3.2 Gen 2 10Gbps Type-AUSB 3.2 Gen 2x2 20Gbps Type-COptical S/PDIF OUTMAG Z690 TOMAHAWK WIFI DDR4 back panel ports DIMENSIONS ATX Form Factor12 in. x 9.6 in. (30.5 cm x 24.4 cm).
