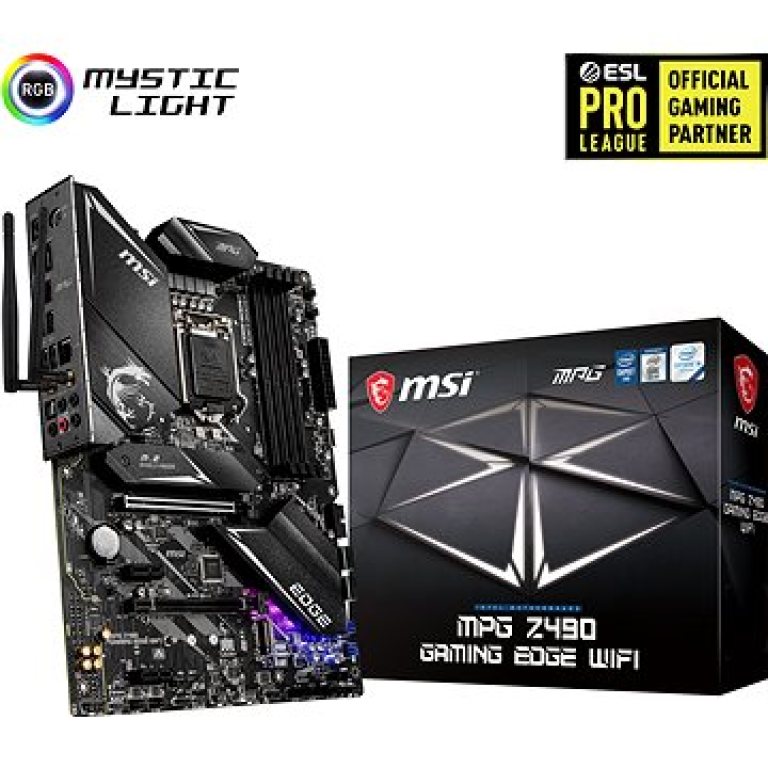

MSI MPG Z490 GAMING EDGE WIFI

Processor Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket Please go to intel.com for compatibility information. Onboard graphics output are disabled when using the F SKU processors. Chipset Intel® Z490 Chipset Memory 4x DDR4 memory slots, support up to 128GB Supports 1R 2133/2666/2933 MHz* 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4266+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Expansion Slots 1x PCIe 3.0 x16 slot (from CPU) 1x PCIe 3.0 x16 slot (x4 mode, from PCH) 2x PCIe x1 slots (from PCH) Onboard Graphics 1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz Multi-GPU Supports AMD® 2-Way CrossFire™ Technology Storage Intel® Z490 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) Supports up to PCIe 3.0 x4 and SATA 6Gb/s M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices M2_2 slot supports 2242/ 2260 /2280 storage devices Intel® Optane™ Memory Ready SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. SATA5& SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. RAID Intel® Z490 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 PCIe storage devices USB Intel® Z490 Chipset 1x USB 3.2 Gen 2 10Gbps Type-A port on the back panel 7x USB 3.2 Gen 1 5Gbps (4 Type-A ports on the back panel, 2 ports through the internal USB connector, 1 Type-C internal connector) 2x USB 2.0 ports on the back panel 4x USB 2.0 ports available through the internal USB connectors, hub-GL850G ASMedia® ASM3241 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel Audio Realtek® ALC1200-VD1 Codec 7.1-Channel High Definition Audio Supports S/PDIF output LAN 1x Realtek® RTL8125B-CG 2.5G LAN Controller WiFi& Bluetooth Intel® AX201 MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps 802.11ac; WiFi 6 pre certified Bluetooth 5.1, FIPS, FISMA 1x M.2_3 Socket with E key (Wi-Fi mode) Internal connectors 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 6x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x chassis intrusion connector 1x Clear CMOS jumper 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x TPM module connector 1x TBT connector 1 1x RTD3 connector Thunderbolt card need support RTD3 Back panel ports PS/2 Combo Port DisplayPort USB 3.2 Gen 2 10Gbps (Type-A) LAN Port HD Audio Connectors USB 2.0 HDMI Port USB 3.2 Gen 2x2 20Gbps (Type-C) USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth Optical S/PDIF OUT Dimensions ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) Operating System Support for Windows® 10 64-bit.
