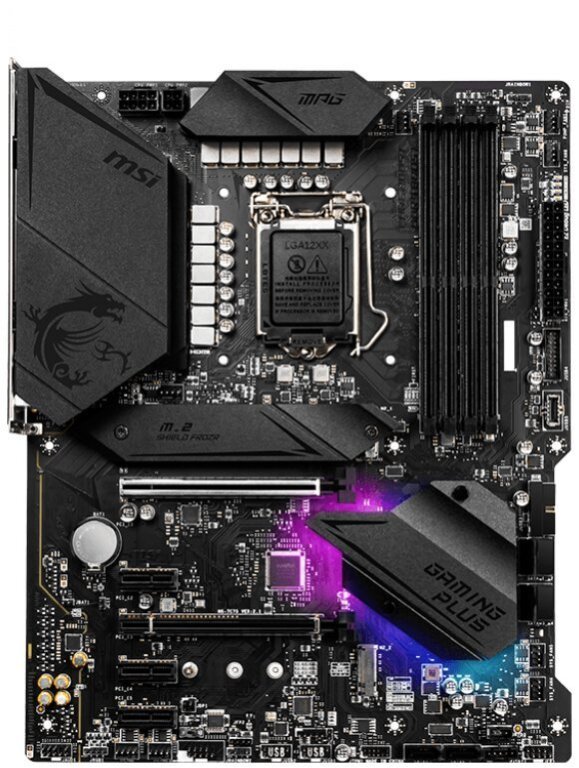

MSI MPG Z490 GAMING PLUS

Processor Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket Please go to intel.com for compatibility information. Onboard graphics output are disabled when using the F SKU processors. Chipset Intel® Z490 Chipset Memory 4 x DDR4 memory slots, support up to 128GB Supports 1R 2133/2666/2933 MHz 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4266+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Expansion Slot 1x PCIe 3.0 x16 slot (from CPU) 1x PCIe 3.0 x16 slot (from PCH, supports x4 mode) 3x PCIe x1 slots (from PCH) Onboard Graphics 1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz Multi-GPU Supports 2-Way AMD® CrossFire™ Technology Storage Intel® Z490 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready 3 Supports Intel® Smart Response Technology for Intel Core™ processors SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. SATA5& SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. RAID Intel® Z490 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 PCIe storage devices USB Intel® Z490 Chipset 2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port and 1 Type-C port on the back panel) 7x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 4 ports through the internal USB connectors, 1 Type-C internal connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) Audio Realtek® ALC1200-VD1 Codec 7.1-Channel High Definition Audio Supports S/PDIF output LAN 1x Realtek® RTL8125B-CG 2.5G LAN Controller Internal connectors 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 6x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x serial port connector 1x TPM module connector 1x TBT connector Thunderbolt card need support RTD3 Back panel ports PS/2 Combo Port USB 3.2 Gen 2 10Gbps (Type-A) LAN Port HD Audio Connectors USB 2.0 Ports HDMI Port DisplayPort USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 1 5Gbps (Type-A) Optical S/PDIF OUT Dimensions ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) Operating System Support for Windows® 10 64-bit.
