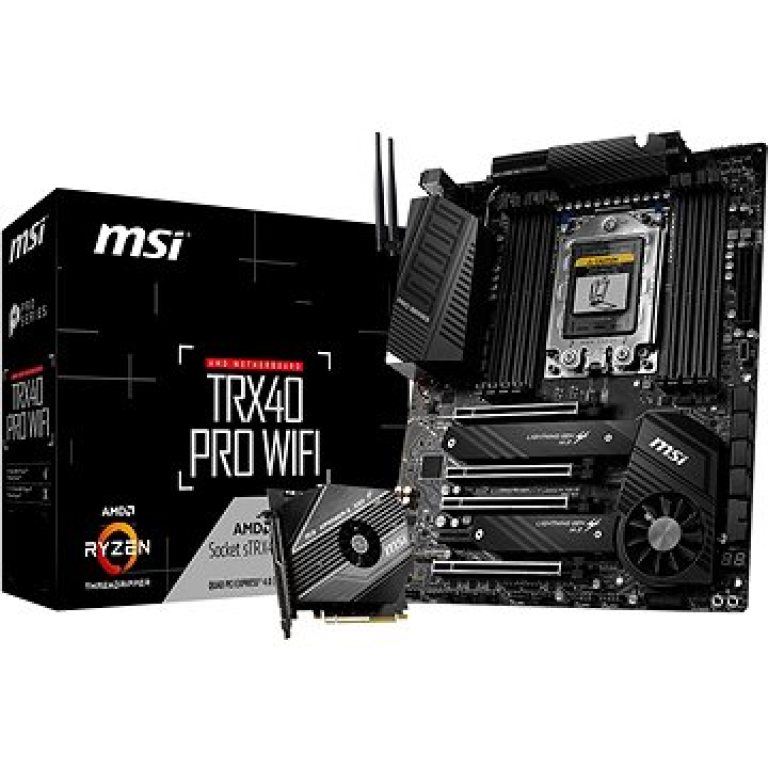

MSI TRX40 PRO WIFI

Chipset: AMD® TRX40 Rozměrový formát: ATX Form Factor (304 x 244 mm) Podpora pro procesory: 3rd Gen AMD Ryzen™ Threadripper™ Desktop Processors Patice procesoru: sTRX4 Pozice na paměti: 8x DDR4 memory slots, Quad (4) channel memory architecture Podpora pro paměti: *2133/2400/2666/3200MHz by JEDEC *2666/2800/2933/3000/3200/3466/3600/3733/3866/4000/4266/4400/4600/4666 by A-XMP OC MODE Max.velikost operační paměti: 256 GB Podpora pro paměti typu: *Intel® Extreme Memory Profile (XMP) *non-ECC UDIMM memory *ECC UDIMM memory *un-buffered memory Grafická karta: *Podpora 3-Way NVIDIA® SLI™ Technology *Podpora 3-Way AMD® CrossFire™ Technology Zvuková karta: *Realtek® ALC1220 Codec, 7.1-Channel High Definition Audio, Podpora Optical S/PDIF output Síťová karta: 2x Intel® I211AT Gigabit LAN controller WiFi a Bluetooth: Intel® Wi-Fi 6 AX200 (802.11 a/b/g/n/ac/ax) + Bluetooth 5.0 Rozšiřující sloty: *4x PCIe 4.0 x16 slots (support x16/x8/x16/x8 mode) *1x PCIe 3.0 x1 slot RAID řadič: RAID 0, RAID 1 and RAID 10 SATA: *8x SATA 6Gb/s ports M.2: *2x M.2 slots (Key M) USB: *AMD® TRX40 Chipset *2x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port on the back panel and 1 Type-C port through the internal USB connector) *6x USB 3.2 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen1 connectors) *4x USB 2.0 (High-speed USB) ports available through the internal USB 2.0 connectors *AMD® Processor *2x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel *2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel *ASMedia® ASM3242 Chipset *1x USB 3.2 Gen2x2 (SuperSpeed USB 20Gbps) Type-C port on the back panel Interní porty: *1x 24-pin ATX main power connector *2x 8-pin ATX 12V power connectors *8x SATA 6Gb/s connectors *2x M.2 slots (M-Key) *1x USB 3.2 Gen2 Type-C port *2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) *2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) *1x 4-pin CPU fan connector *1x 4-pin Water Pump Fan connector (supports up to 2A) *4x 4-pin system fan connectors *1x Front panel audio connector *2x System panel connectors *1x Chassis Intrusion connector *1x 4-pin 5050 RGB LED connector *2x 3-pin ARGB LED connectors *1x 3-pin CORSAIR LED connector *1x Slow mode booting jumper *1x Power button *1x Reset button Externí porty: *Clear CMOS Button *Wireless / Bluetooth *2x Gigabit LAN *Audio Connectors *Flash BIOS Button *4x USB 3.2 Gen1 Type-A *3x USB 3.2 Gen2 Type-A *1x USB 3.2 Gen2x2 20G Type-C *Optical S/PDIF out Stránka výrobce: https://www.msi.com/Motherboard/TRX40-PRO-WIFI/Overview.
